Overview

Core2 for AWS IoT EduKit API Reference

This Core2 for AWS IoT EduKit API Reference provides a set of definitions for the various drivers that are included as part of the M5Stack Core2 for AWS IoT EduKit board support package (BSP). A board support package is the software layer that contains hardware drivers and other routines you can use when writing your applications to access the on-board hardware features. The BSP relies on and sits on top of Espressif's IoT Developer Framework (ESP-IDF) version 4.2, and executes from the ESP32-D0WD micro-controller unit (MCU) to all attached peripherals. The ESP-IDF v4.2 uses a customized version of FreeRTOS and usage of the BSP requires knowledge of C programming and real-time operating systems.

The BSP is located in each of the AWS IoT EduKit program's provided project's components/core2forAWS directory. Do the following steps to create an empty project:

1. Copy the Core2 for AWS IoT EduKit BSP into your project's components directory.
2. Copy the Core2 for AWS port of the esp-cryptoauthlib into your project's components directory.
3. Copy sdkconfig.defaults, partitions_16MB.csv, CMakeLists.txt, and platformio.ini files to the root of your project. You can customize the platformio.ini file and CMakeLists.txt to suite your needs.
4. Create a main.c file in a new main folder that at the has the following code:

   #include "core2forAWS.h"

   void app_main(void){

   }

For more information on setting up your PlatformIO configuration file and additonal configuration options, view their official docs. For information on the ESP-IDF v4.2 and APIs available, see Espressif's official documentation.

Driver APIs

Library	Feature	Description
Core2forAWS	Microcontroller	Main ESP32-D0WD MCU hardware helper APIs.
ATECC608	Secure Element	ATECC608 Trust&GO secure element, which provides a hardware root of trust.
AXP192	Power Management Unit (PMU)	Controls the input power, peripheral power, and battery charging circuit.
BM8563	Real-Time Clock (RTC)	Date time RTC with alarm and timer.
Button	Virtual Buttons	Virtual touch buttons. Uses the FT6336U with mapped locations for button presses/holds/releases.
FT6336U	Touch	Capacitive touch controller providing X & Y coordinate screen touches.
ILI9342C	Display Controller	Provides functions to directly operate the display controller. To draw to the screen, use LVGL APIs.
MPU6886	Accelerometer/gyroscope	Inertial Measurement Unit (IMU) with built-in temperature sensor.
NS4168	Speaker	Speaker helper library.
SK6812	Side LEDs	Side LED bar helper libraries which uses the Adafruit NEOPIXEL library.
SPM1423	Microphone	Microphone helper library. Use ESP-IDF's I2S library to read from mic.
SD Card	SD Card	SD Card helper library.
Expansion Ports	Ports A, B, C	The peripheral (DAC, ADC, UART, and GPIO) helper library for expansion ports A, B, C.

3rd Party Libraries Used

Library	Description
Light and Versitile Graphics Library (LVGL)	Graphics library that has been ported for the Core2 for AWS.
ESP-AWS-IoT	AWS IoT Device SDK for Embedded C ported for ESP32. Provides client connectivity and AWS IoT Device Shadow service capability.
ESP-CRYPTOAUTHLIB	ATECC608 HAL ported for ESP32. Provides libraries to interface with the secure element.
ESP RainMaker	An end-to-end connected home solution by Espressif to enable remote control and monitoring without any configuration required.
ESP-VA-SDK	ESP-Voice-Assistance SDK for Alexa Voice Service capabilities on the ESP32.

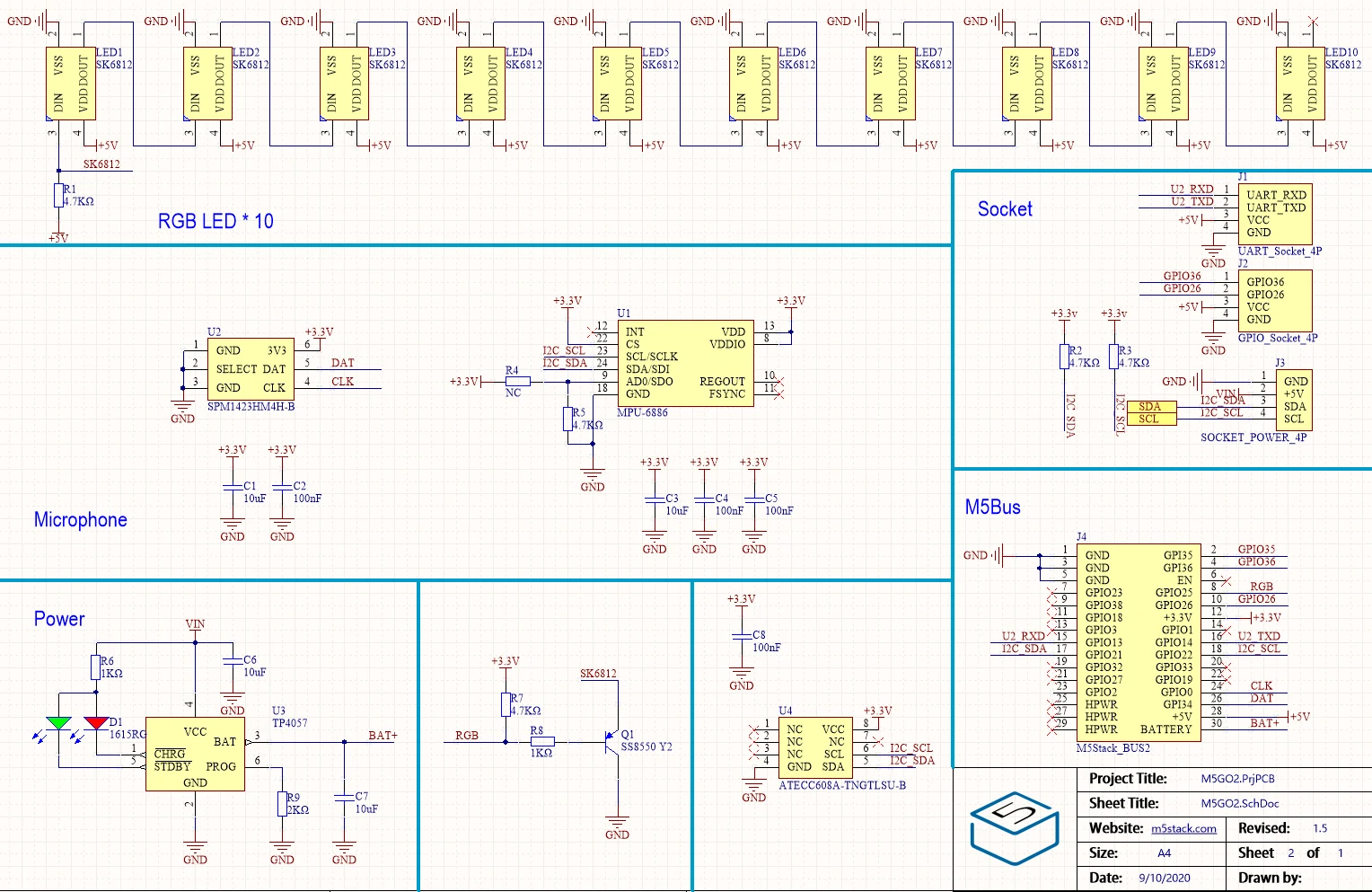

Hardware Schematics

Hardware Section	Parts Contained
Top (Amazon Orange)	ESP32-D0WD, AXP192, BM8563, ILI9342C, FT6336U, NS4168
Bottom (Squid Ink grey)	10x SK6812, SPM1423, ATECC608
